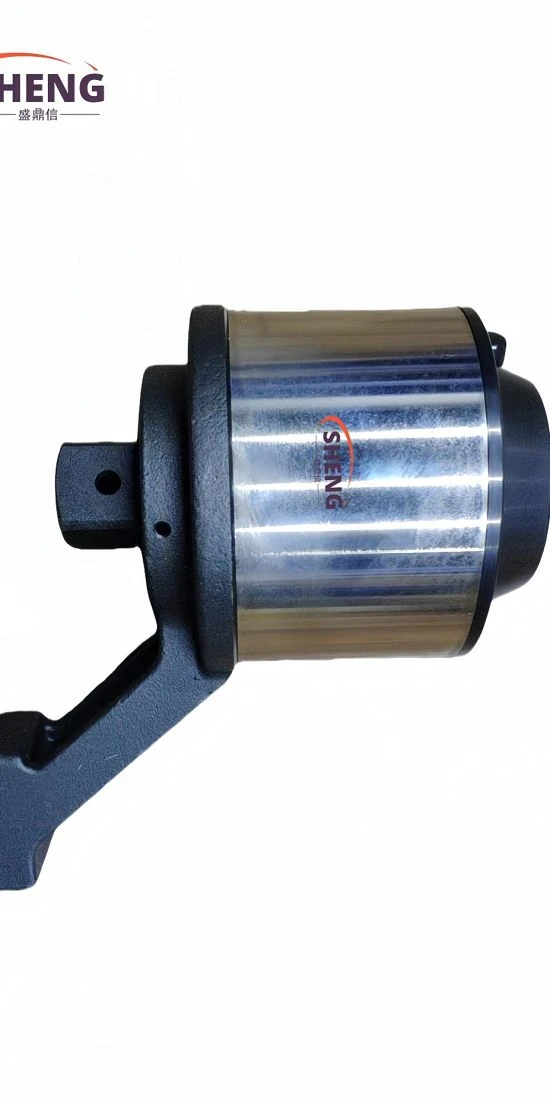

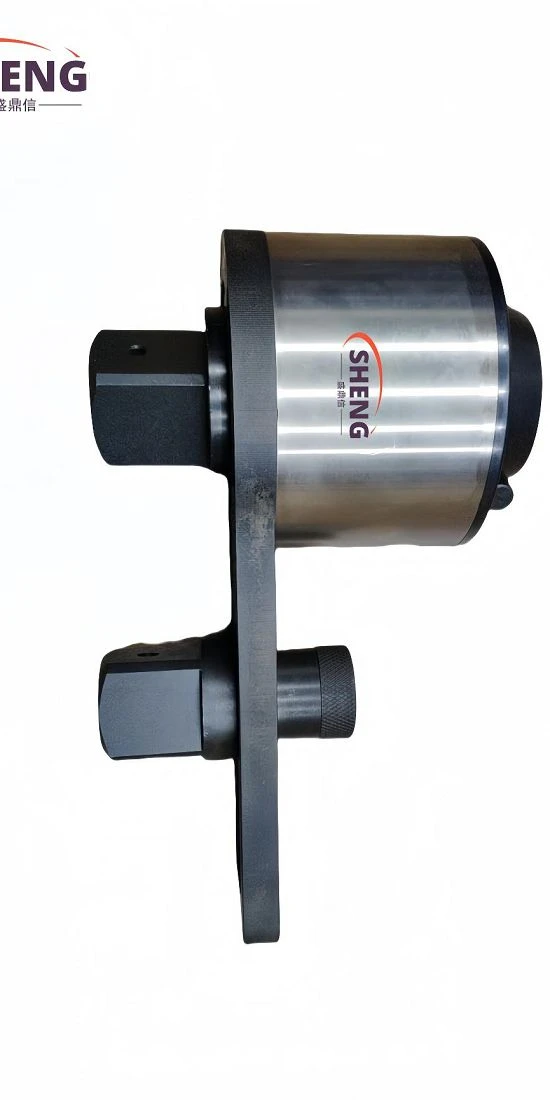

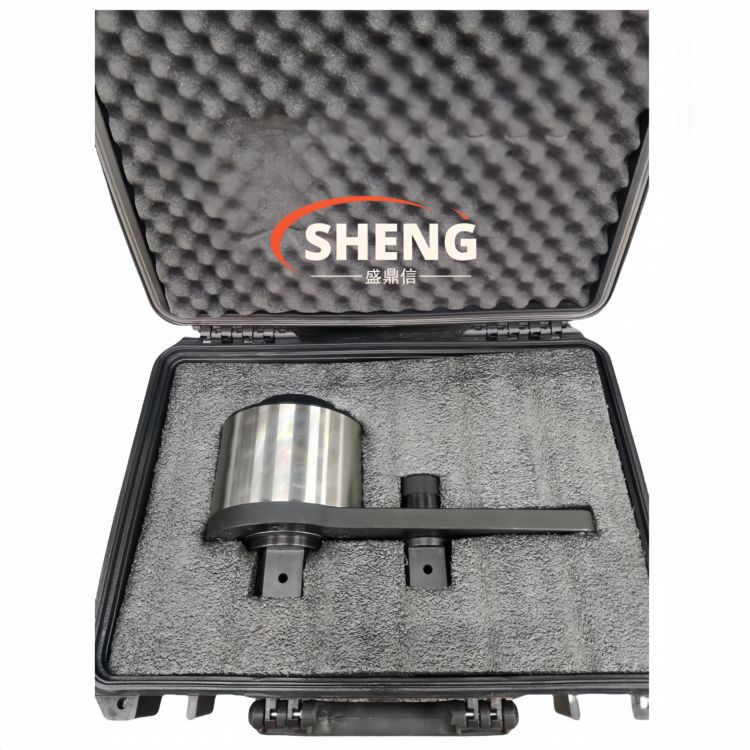

Mahsulot taqdimoti
Yassi turdagi portativ moment ko'paytirgichlari kichik bo'shliqlarda yong'oq va murvatlarni yuklash va tushirish uchun javob beradi, lekin katta moment qiymatlari bilan. Bolt va gaykalarni mahkamlash yoki demontaj qilishni osonlik bilan yakunlash uchun operatorga planetar reduktorni qisqartirish mexanizmi orqali 4-29 marta momentni kuchaytirish chiqishi uchun kichik momentni qo'llash kifoya.
Mahsulot spetsifikatsiyalari
|
Model |
Maksimal moment [N.m] |
Vites nisbati |
Kirish haydovchi [in] |
Chiqish drayveri [in] |
Hajmi (A*B*C*D) mm |
Moslashuvchan murvat diametri |
Yassi bo'ylab yong'oq |
Og'irligi [Kg] |
|
SDX-100CT-01 |
1500 |
1:4 |
1/2" |
1" |
82*98.5*97*122.4 |
M20-30 |
S30-46 |
2.1 |
|
SDX-100CT-02 |
2000 |
1:13 |
1/2" |
1" |
82*120*105*147 |
M22-35 |
S32-55 |
3.15 |
|
SDX-100CT-03 |
3500 |
1:16 |
1/2" |
1" |
98*131*120*163 |
M30-45 |
S46-70 |
4.9 |
|
SDX-100CT-04 |
5500 |
1:21 |
1/2" |
1-1/2" |
115*163.5*137*199 |
M38-52 |
S55-80 |
8.1 |
|
SDX-100CT-05 |
7500 |
1:23 |
1/2" |
1-1/2" |
127*173*146*215 |
M42-60 |
S65-90 |
10.6 |
|
SDX-100CT-06 |
10000 |
1:28 |
1/2" |
1-1/2" |
141*170*164*238 |
M52-72 |
S80-105 |
14 |
tekis moment multiplikatorining texnik xususiyatlari
|
Model |
Maksimal moment [N.m] |
Vites nisbati |
Kirish haydovchi [in] |
Chiqish drayveri [in] |
Hajmi (A*B*C) mm |
Moslashuvchan murvat diametri |
Yassi bo'ylab yong'oq |
Og'irligi [Kg] |
|
SDX-200CT-01 |
1500 |
1:4 |
1/2" |
1" |
82*97*(76.7-127.3) |
M20-30 |
S30-46 |
2.4 |
|
SDX-200CT-02 |
2000 |
1:13 |
1/2" |
1" |
82*120*(92.7-129.3) |
M22-35 |
S32-55 |
3.5 |
|
SDX-200CT-03 |
3500 |
1:16 |
1/2" |
1" |
98*128*(102.7-145.3) |
M30-45 |
S46-70 |
5 |
|
SDX-200CT-04 |
5500 |
1:21 |
1/2" |
1-1/2" |
115*157*(134.05-165.95) |
M38-52 |
S55-80 |
8.7 |
|
SDX-200CT-05 |
7500 |
1:23 |
1/2" |
1-1/2" |
127*168*(139.05-190.95) |
M42-60 |
S65-90 |
11.7 |
|
SDX-200CT-06 |
10000 |
1:28 |
1/2" |
1-1/2" |
141*186*(144.05-215.95) |
M52-72 |
S80-105 |
15.2 |
|
SDX-200CT-07 |
15000 |
1:50 |
1/2" |
2-1/2" |
156*246*(155.25-244.75) |
M60-85 |
S80-120 |
24.1 |
|
SDX-200CT-08 |
20000 |
1:76 |
1/2" |
2-1/2" |
170*264*(163.75-276.25) |
M72-100 |
S105-145 |
27.8 |
Tork ko'paytirgichiga texnik xizmat ko'rsatish
1. Ushbu mahsulotning barcha viteslari va aylanadigan qismlari yig'ish paytida yaxshi soqol holatidadir, ammo keyingi foydalanish paytida yog' muqarrar ravishda yo'qoladi. Ko'paytirgichning samaradorligi pasayganligi aniqlanganda yoki vites moslashuvchan aylana olmasa, aylanish samaradorligini oshirish va xizmat muddatini uzaytirish uchun ko'paytirgichni ochish va moyni qayta ishlatish kerak.
2. Iltimos, moment oralig'ida tork kaliti va ko'paytirgichdan foydalaning. Asbobning xizmat qilish muddatini uzaytirish uchun uni maksimal moment chiqish qiymatining 80% ichida ishlatish yaxshidir.
Yassi turdagi ko'chma moment ko'paytirgichlarimiz haqida biron bir ehtiyoj yoki savolingiz bo'lsa, iltimos biz bilan bog'laning va bizda sizga yordam beradigan professional texnologik guruhimiz bor va biz sizning maxsus so'rovingiz bo'yicha asbobni ishlab chiqara olamiz yoki sizning qurilishingiz bo'yicha asbobni loyihalashtiramiz. talab va ehtiyojlar.
Sizning so'rovingizni iliq kutib olamiz!
